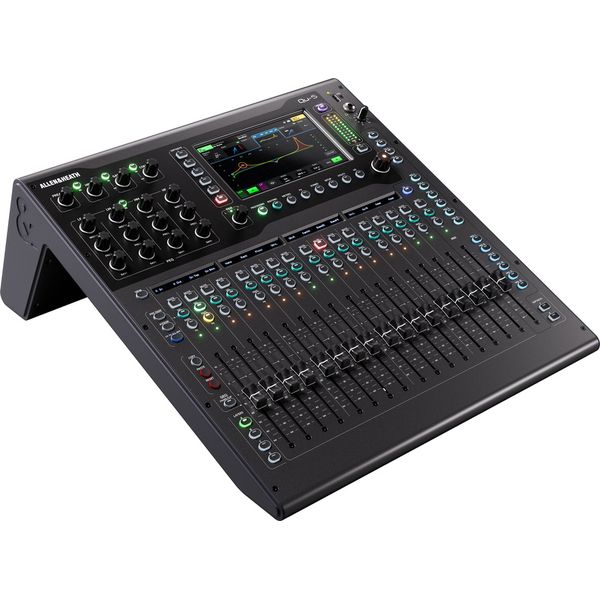

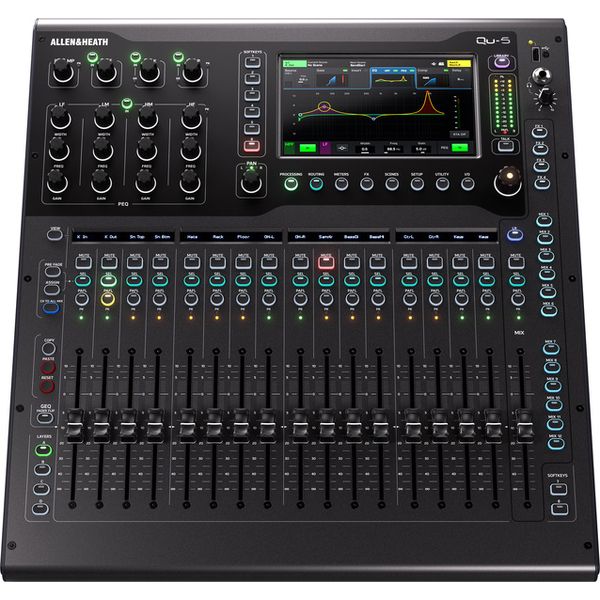

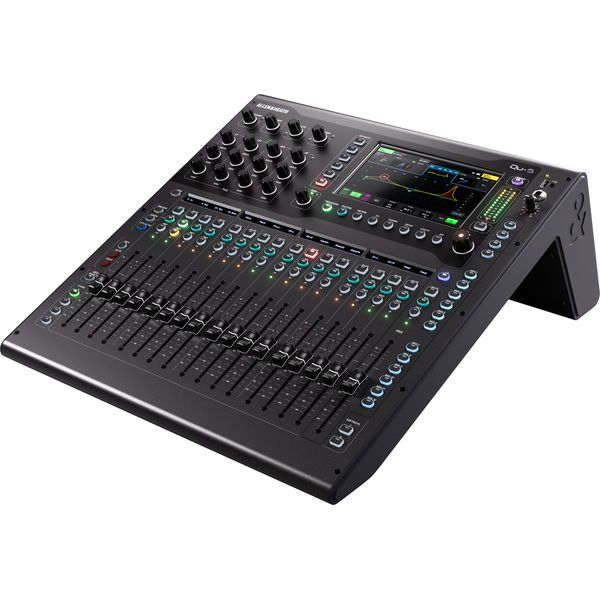

Allen & Heath QU5 Digital Mixing Console
₹169,999.00
Supreme Portability Meets Advanced XCVI Processing
Blending the svelte form factor of the Qu-16 with the power of Allen & Heath’s advanced XCVI processing, the Qu-5 redefines what’s possible in a compact digital mixer. This cutting-edge, 32-channel, 24-bit/96kHz console delivers exceptional performance with six studio-grade Multi-FX engines, each with dedicated returns, and versatile Everything I/O connectivity. At the heart of the Qu-5 is a vibrant 7-inch capacitive touchscreen, enhanced by vivid channel strip displays, four user-definable layers, and eight programmable SoftKeys, offering intuitive control at your fingertips. Additionally, this mixer houses 16 premium digitally controlled mic preamps, engineered for pristine transparency, ultra-low noise, and musical warmth that elevates any live mix. Hands-on control abounds, thanks to 17 smooth 100mm motorized faders and a thoughtfully designed interface. Moreover, the Qu-5’s USB-C audio interface and SD card slot provide you with up to 32 channels of recording and playback, with or without a computer. Fully rackmountable and built to handle the demands of modern live sound production, the Allen & Heath Qu-5 empowers you to unlock the full potential of digital mixing, setting a new benchmark in its class.
Flagship processing, now in a compact Qu mixer
The Qu-5 combines the compact portability of the best-selling Qu-16 with the powerful 96kHz FPGA processing of Allen & Heath’s acclaimed XCVI Core, the same engine that drives the company’s flagship SQ and dLive series. This advanced digital mixer features six cutting-edge Multi-FX engines, each with dedicated return channels, and offers full Everything I/O connectivity for maximum flexibility and expandability. Enhancing its intuitive workflow, the Qu-5 is equipped with a large 7-inch capacitive touchscreen, vivid channel strip displays, customizable layers, and eight programmable SoftKeys, delivering a seamless, hands-on mixing experience in a space-saving design. Here, we’ve worked with Qu series mixers since their original unveiling, and we’re genuinely impressed by the Qu-5’s elevated capabilities and refined user experience.
All the I/O you need — right where you need it

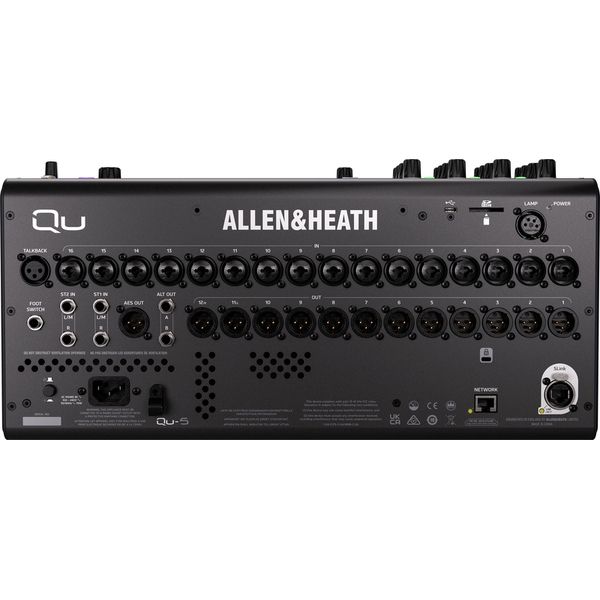

Designed for maximum flexibility, the Allen & Heath Qu-5 boasts a highly versatile I/O configuration with 36 mix inputs, including 32 mono channels — linkable for stereo operation — and two dedicated stereo channels. Its output architecture features a stereo main LR bus, 12 mix outputs (comprising six mono or linkable auxes and six stereo aux/group mixes), and four matrix outputs that can also be configured as stereo pairs. For physical connectivity, the Qu-5 includes 16 XLR mic/line combo jacks, two stereo line input pairs (each with dual TRS connectors), and a dedicated talkback input. On the output side, it offers 12 XLR outputs, two TRS outputs, and a stereo AES3 digital output, ensuring seamless integration into both live sound and studio production environments.
Multitrack recording made effortless
Recording with the Qu-5 is refreshingly straightforward. It features a 32-in/32-out USB-C audio interface, allowing seamless integration with your DAW for multitrack recording and playback. For standalone operation, the built-in SD card slot supports 32-channel recording and playback at up to 48kHz and supports 16 channels at 96kHz, eliminating the need for a computer. Additionally, a USB-A port enables stereo recording, playback, and data transfer.
Allen & Heath Qu-5 Features:
- Next-gen, 32-channel, 24-bit/96kHz digital mixer blending the Qu-16’s svelte form factor with advanced XCVI processing
- 6 Multi-FX engines, each with dedicated returns, lend a studio-quality sheen to your mixes
- Versatile Everything I/O connectivity ensures maximum flexibility and expandability
- Vibrant 7-in. capacitive touchscreen offers easy access to channel strips, FX, and more
- Vivid channel strip displays, 4 user-definable layers, and 8 programmable SoftKeys put intuitive control at your fingertips
- 36 mix inputs, including 32 mono channels — linkable for stereo operation — and 2 dedicated stereo channels
- 16 premium digitally controlled mic preamps, engineered for pristine transparency, ultra-low noise, and musical warmth
- 17 smooth 100mm motorized faders and a thoughtfully designed interface provide intuitive hands-on control
- USB-C audio interface and SD card slot provide you with up to 32 channels of recording and playback
- Fully rackmountable and built to handle the demands of modern live sound production
Tech Specs
- Type:Digital Mixer
- Channels:32
- Inputs – Mic Preamps:16 x XLR (mic/line)
- Phantom Power:16 Channels
- Inputs – Other:4 x 1/4″ (2 Stereo In)
- Outputs – Main:2 x XLR (left, right)
- Outputs – Direct:10 x XLR
- Outputs – Other:2 x 1/4″ (alt)
- Outputs – Digital:1 x XLR (AES/EBU)
- Talkback:1 x XLR
- Data I/O:1 x EtherCon (SLink), 1 x RJ45
- Headphones:1 x 1/4″
- USB:1 x USB-A, 1 x USB-C
- Computer Connectivity:USB-C (32×32)
- Remote:1 x Footswitch
- Faders:17 x 100m Motorized Faders
- A/D Resolution:24-bit/96kHz
- EQ Bands:4-band parametric
- Features:96kHz FPGA Core
- Screen:7″ Capacitive Touchscreen
- Storage:SD card slot
- Software:Remote control via free apps – Windows/MacOS/iOS/Android
- Rackmountable:Yes (kit sold separately)
- Power Source:IEC Main Connection w/Worldwide PSU
- Height:8.3″
- Depth:18.7″
- Width:17.3″
- Weight:22 lbs.
- Manufacturer Part Number:AH-QU-5
