High-performance, 10-inch drivers
JBL’s SRX910LA loudspeakers are powered by two 10-inch neodymium woofers, along with a 3-inch compression driver for crystal-clear sound fidelity and a highly impressive SPL. The SRX910LA utilizes JBL’s innovative RBI (Radiation Boundary Integrator), mounting both the high and low transducers onto one horn — this greatly improves your speaker’s horizontal directivity and helps to optimize your sound potential. Plus, the large horn size delivers an extended low-frequency punch and aids in the reduction of energy in the rear of the speaker array.
Scale up your system
The SRX900 series is an all-encompassing system, including loudspeakers, subwoofers, software, and a wealth of accessories that will take your sound to the next level. However, if you’re looking to start small and build your way up to a world-class system, the SRX900 series is built with effortless scalability in mind; every product in the SRX900 series is designed with the same voicing targets and phase characteristics of JBL’s other tour sound offerings to perfectly mix and match a system to your particular needs.
Optimize your sound
No power amp, no problem! The SRX900 series’ fully integrated class-D power is an uncompromising design that’s tailor-made to get the most out of your speakers. In addition, powerful DSP features including Array Size Compensation, FIR-based Throw Distance Correction filters, 2,000ms of delay, and 24 user-adjustable filters are included to perfectly optimize your system, regardless of your setup and space. Finally, adjusting your controls is a breeze thanks to the SRX900 series combo of a rear panel LCD and Wi-Fi control through JBL’s software suite!
JBL SRX910LA Powered Line Array Loudspeaker Features:
- 880W 2 x 10-inch with 3-inch compression driver design can easily handle most medium- to large-sized venues
- Maximum peak output of 135dB
- Designed with commonly-shared voicing targets between JBL’s other tour sound options, making it easy to build up your system
- RBI technology enhances horizontal directivity and lessens cabinet size

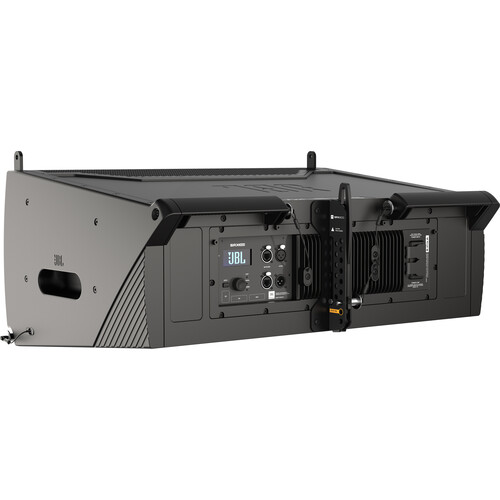

- Rear-panel LCD for easy adjustment of settings and presets
- Wide-ranging DSP effects, including Array Size Compensation, FIR-based Throw Distance Correction filters, 2,000ms of delay, and 24 user-adjustable filters for complete optimization of your sound
- Compact and lightweight FEA-optimized composite enclosure construction for easy portability and optimized internal volume
- JBL software package for complete control over the SRX900 system available on Windows, macOS, and iPad
Tech Specs
- Powered:Yes
- Power Configuration:Bi-amped
- Channels:2-channels
- LF Driver Size:2 x 10″ woofer
- HF Driver Size:1.5″ exit neodymium compression driver, 3″ voice coil
- Total Power:600W, 880W Peak
- Inputs:1 x XLR
- Outputs:1 x XLR
- Data I/O:2 x EtherCon
- Frequency Range:53Hz-19khz (-10 dB)
- Maximum Peak SPL:135dB SPL
- Horizontal Coverage Angle:105 Degrees
- Vertical Coverage Angle:Varies with configuration
- Enclosure Material:Polypropylene
- Mounting Options:Three-point, captive suspension plates
- Power Source:1 x powerCON TRUE1 (in), 1 x powerCON TRUE1 (out/loop)
- Height:28.2″
- Width:20.5″
- Depth:12″
- Weight:59 lbs.
- Manufacturer Part Number:JBL-P3234MX
