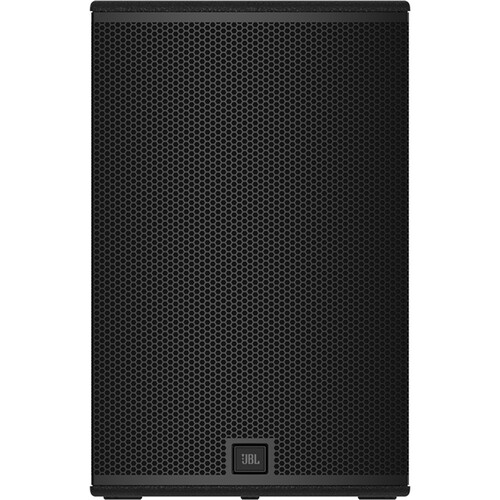

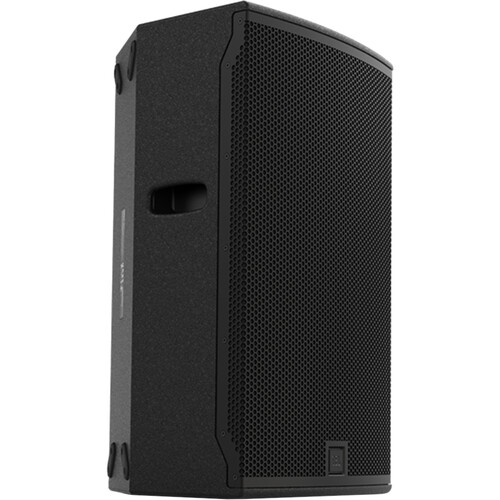

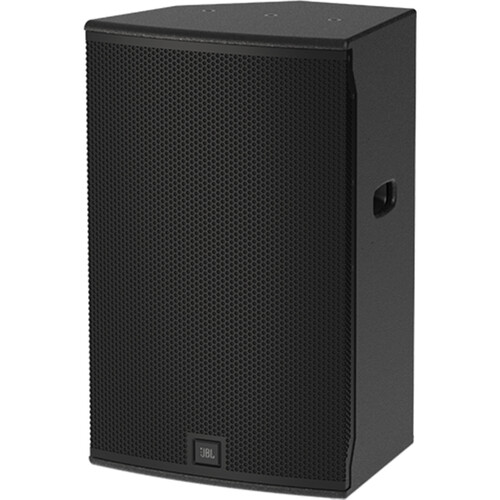

JBL SRX915M Powered Speakers
High-performance PA and Monitoring Solution
An all-star addition to JBL’s SRX900 Series of scalable stage solutions, the SRX915M is a perfect choice as a main PA and for high-performance stage monitoring. This loudspeaker utilizes a 15-inch LF driver and 1.5-inch compression driver alongside JBL’s Differential Drive technology to both extend low frequencies down to 50Hz and enhance headroom. A pair of 2-inch voice coils helps provide reliable operation, balancing output, weight, and thermal performance. And while the SRX915M is voiced for optimal usage with other SRX900 Series line-source models, its overall adaptability is remarkable. Its 90-degree x 60-degree rotatable Progressive Transition waveguide offers total smoothness in coverage, with an 80Hz highpass preset available when operating with SRX900 subwoofers. Take advantage of onboard DSP, 24 adjustable filters, 2,000ms delay, management tools, and a rear-mounted LCD for quick configuration. Rounded out with seven M10 Quick-Link suspension points, 45-degree full-range monitor angling, and a durable Baltic birch housing, the SRX915M proves itself a versatile and ready-to-integrate beast for the stage.
Scale up your system
The SRX900 Series is an all-encompassing system, comprising loudspeakers, subwoofers, software, and a wealth of accessories that will take your sound to the next level. However, if you’re looking to start small and build your way up to a world-class system, the SRX900 Series is built with effortless scalability in mind; every product in the SRX900 Series is designed with the same voicing targets and phase characteristics of JBL’s other tour sound offerings to perfectly mix and match a system to your particular needs.
JBL SRX915M Features:
- 2-way powered, point-source multipurpose speaker perfect for PA and high-performance monitoring applications
- 15-in. LF driver and JBL’s Differential Drive technology extend low frequencies to 50Hz and boost headroom
- 1.5-in. HF annular-diaphragm compression driver complements the arrangement
- 2-in. voice coils provide reliable operation by balancing output, weight, and thermal performance
- Optimally voiced for use with other point-source SRX900 units
- 90° x 60° rotatable Progressive Transition waveguide provides smooth in coverage and exceptional SPL
- Tap into an 80Hz highpass preset when using SRX900 subwoofers
- Highly adaptable thanks to onboard DSP, including 24 adjustable filters, 2,000ms delay, management tools, and a rear-mounted LCD

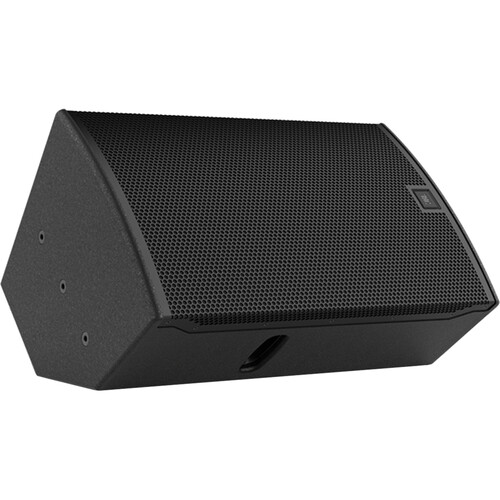

- Rugged Baltic birch housing with 45° full-range angling and 7 x M10 Quick Link mounting points for suspension
Tech Specs
- Powered:Yes
- Power Configuration:Bi-amped
- LF Driver Size:15″ Woofer
- HF Driver Size:1.5″ Annular-diaphragm Compression Driver
- LF Driver Power Amp:580W
- HF Driver Power Amp:300W
- Total Power:880W Peak, 600W Continuous
- Inputs:1 x XLR
- Outputs:1 x XLR
- Data I/O:2 x EtherCON
- Frequency Range:50Hz-20kHz (-10dB)
- Frequency Response:60Hz-19kHz (-3dB)
- Maximum Peak SPL:134dB
- Horizontal Coverage Angle:90°
- Vertical Coverage Angle:60°
- Enclosure Material:Baltic Birch Plywood
- Mounting Options:Pole, Floor Wedge, 7 x M10 Fly Points
- Power Source:2 x PowerCON TRUE1 (in/out)
- Height:26.2″
- Width:16.9″
- Depth:14.5″
- Weight:55 lbs.
- Manufacturer Part Number:JBL-P3363MX
