Shure SLXD14/153B Headworn Wireless Microphone

Professional-grade wireless Headworn Microphone system

The Shure SLXD14/153B is a professional wireless microphone system designed for applications such as lectures, presentations, and live performances. This system combines Shure’s SLXD1 bodypack transmitter with the MX153B earset headworn microphone, delivering transparent digital audio and reliable RF performance

🎤 Key Features

• Digital Audio Quality: Offers 24-bit audio with a frequency response of 20 Hz to 20 kHz and a dynamic range of 118 dB, ensuring clear and natural sound reproduction.

• Reliable RF Performance: Utilizes predictive switching diversity for stable wireless operation, minimizing dropouts and interference.

• Wide Frequency Range: Depending on the model, operates within various frequency bands, such as G59 (470–514 MHz), H56 (518–562 MHz), J53 (562–606 MHz), K59 (606–650 MHz), and L56 (650–694 MHz), accommodating different regional frequency allocations.

• Easy Setup: Features Guided Frequency Setup and automatic channel scanning for quick and straightforward installation.

• Expandable System: Supports up to 32 compatible systems per 44 MHz frequency band, allowing for scalable wireless setups.

• Mobile Control: Compatible with ShurePlus™ Channels mobile app for remote monitoring and control.

🎧 MX153B Earset Microphone Specifications

• Type: Condenser, omnidirectional

• Weight: 19 g

• Frequency Response: 20 Hz – 20 kHz

• Sensitivity: -41 dBV/Pa

• Maximum Sound Pressure: 107 dB

• Connector: TQG (TA4F, 4-Pin Mini)

• Phantom Power Requirement: +1–5 V DC

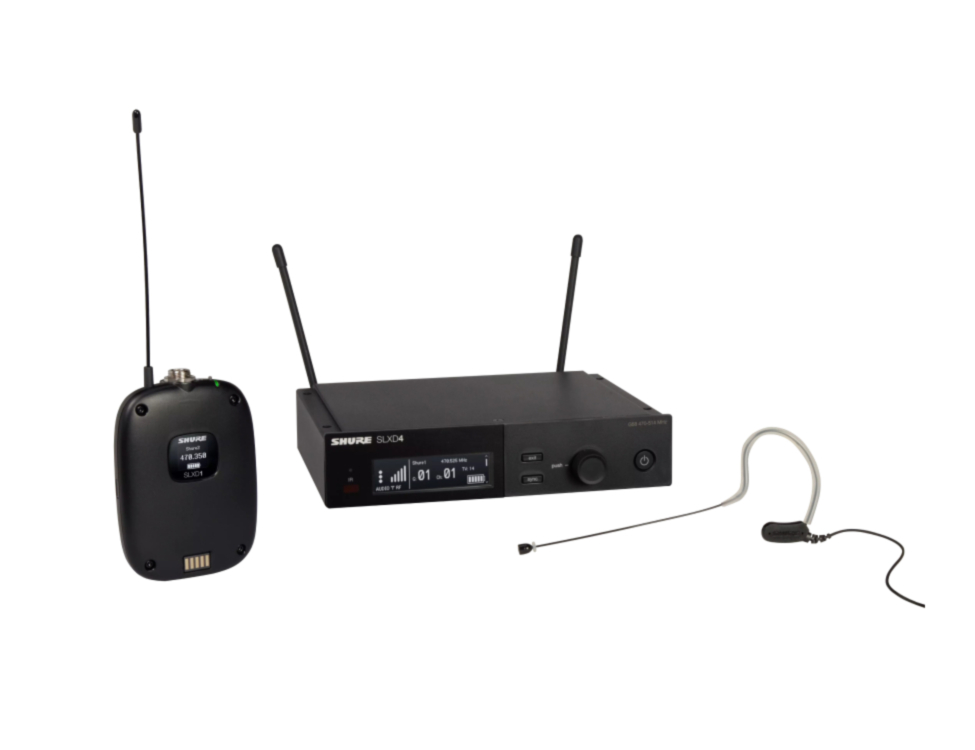

📦 Included Components

• SLXD4 Receiver: Single-channel receiver with Ethernet port for networked control.

• SLXD1 Bodypack Transmitter: Compact transmitter with options for AA batteries or rechargeable SB903 battery.

• MX153B Earset Microphone: Lightweight and discreet microphone suitable for hands-free operation.

• Accessories: Includes windshields, collar clip, antenna, rackmount accessories, and 2 AA batteries.

🔧 Technical Specifications

• Audio Output: Balanced XLR and 1/4″ TRS

• Latency: 3.2 ms

• Operating Range: Up to 100 meters (line-of-sight)

• Power Requirements: Receiver: 15V DC; Transmitter: 2 AA batteries or SB903 rechargeable battery.

This system is ideal for users seeking a reliable and high-quality wireless microphone solution for professional applications. Its digital audio clarity, stable RF performance, and user-friendly setup make it a suitable choice for various environments.
