- FIR-X tuning delivers excellent sound quality with high resolution and a smooth frequency response
- D-Contour optimizes the DBR15 for main speaker or floor monitor use
- Onboard mixer lets you select either a direct output or a mixed output
- Comprehensive inputs for mixer, musical instrument, or media players
- Amplifier and power supply design provides powerful output from a compact speaker
- DSP-controlled protection functionality promotes optimum reliability

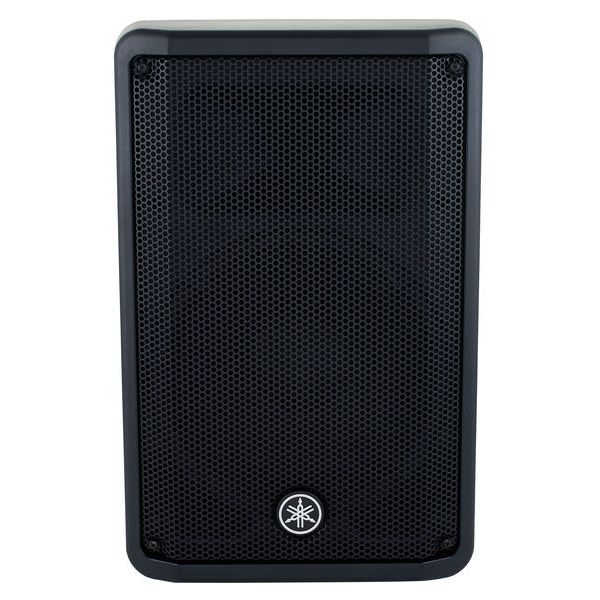

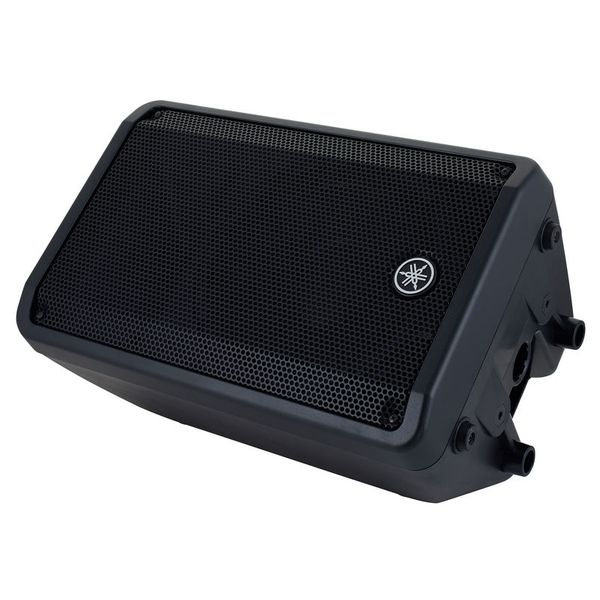

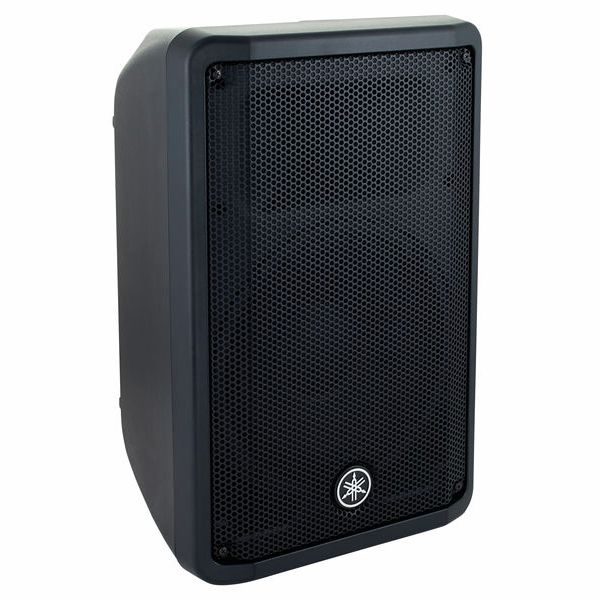

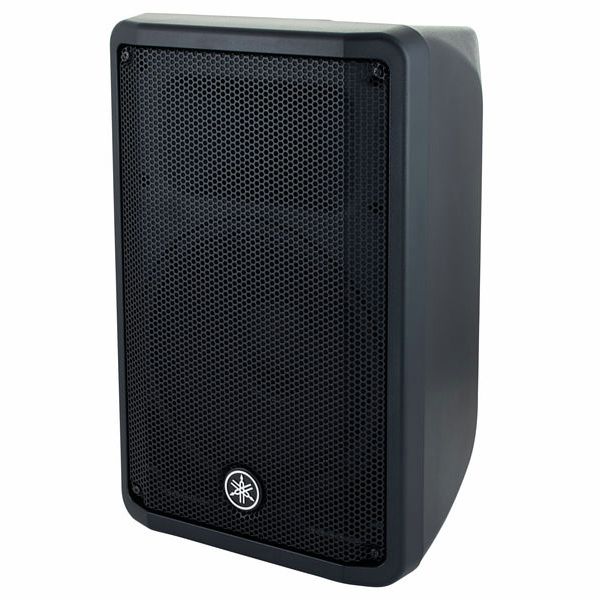

The Yamaha DBR15 is a portable, high-performance 15″ active PA speaker!
Tech Specs
- Powered:Yes
- Power Configuration:Bi-amped
- LF Driver Size:1 x 15″
- HF Driver Size:1.4″
- LF Driver Power Amp:800W
- HF Driver Power Amp:200W
- Total Power:1000W
- Inputs:2 x XLR/TRS Combo, 1 x Stereo
- Outputs:1 x XLR
- Frequency Range:50Hz-20kHz (-10dB)
- Crossover Frequency:2.1kHz
- Maximum Peak SPL:132dB
- Horizontal Coverage Angle:90 Degrees
- Vertical Coverage Angle:60 Degrees
- Enclosure Material:Plastic
- Mounting Options:Pole Mount with 1.37″ socket, Floor Wedge, 3 x M8 Fly Points
- Power Source:Standard IEC AC cable
- Height:27.6″
- Width:17.9″
- Depth:14.9″
- Weight:42.6 lbs.
- Manufacturer Part Number:DBR15
