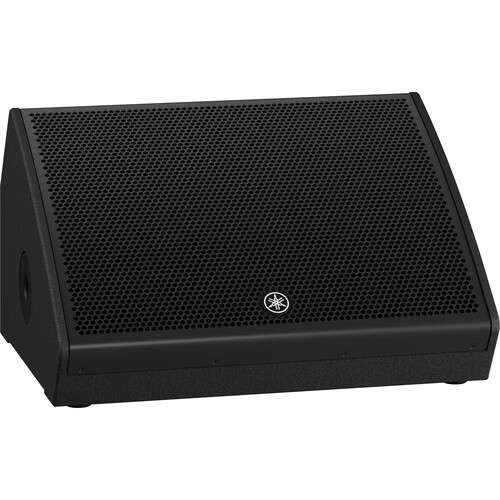

Yamaha DHR15M Powered Stage Monitor

Achieve optimal sound in any application

The live sound experts sing the praises of the DHR15M’s versatile design. Powered by a 1,000-watt Class D amplifier, this 15-inch active wedge monitor features a coaxial 1.4-inch high-frequency compression driver, yielding accurate vocal reproduction and stage-filling coverage. Moreover, the DHR15M’s 48-bit DSP with D-Contour intelligent dynamic control ensures optimal sound at every volume level. You also get dual pole sockets that allow either straight placement or a 7-degree downward tilt to best serve your needs.

Yamaha DHR15M Features:

• Driven by 1,000 muscular watts of Class D power
• Crystal-clear reproduction with a thunderous maximum output of 131dB
• 15-inch cone woofer and a 1.4-inch high-frequency compression driver yield a 44Hz–20kHz frequency response
• Coaxial design ensures stage-filling coverage regardless of speaker orientation
• 48-bit digital processing delivers high-definition sound
• D-Contour intelligent dynamic control ensures optimal sound at every volume level

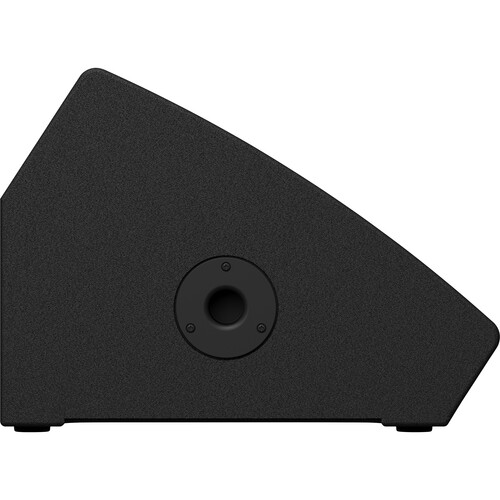

• 2 pole sockets allow either straight placement or a 7° downward tilt to certify optimal coverage
• Hard-wearing polyurea-coated plywood enclosure

Tech Specs

• Type:Powered Floor Monitor
• Powered:Yes
• Power Configuration:Bi-amped
• LF Driver Size:15″ woofer
• HF Driver Size:1.4″ compression driver
• Total Power:1000W

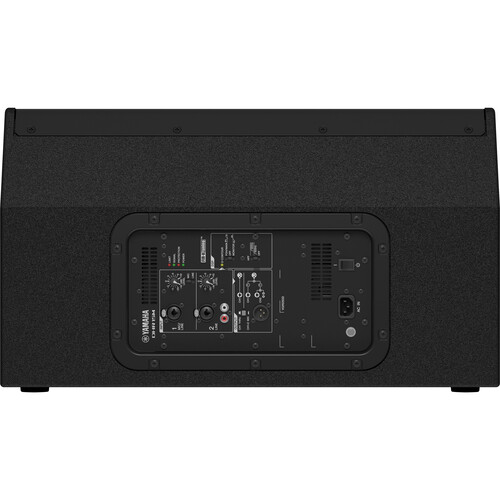

• Inputs:2 x XLR-1/4″ combo (mic/line), 1 x Dual RCA Stereo
• Outputs:1 x XLR
• Frequency Range:44Hz-20khz
• Maximum Peak SPL:131dB
• Horizontal Coverage Angle:90°
• Vertical Coverage Angle:60°
• Enclosure Material:Plywood
• Mounting Options:Floor
• Power Source:Standard IEC AC cable
• Height:15.9″
• Width:17″
• Depth:27.2″
• Weight:52.9 lbs.
• Manufacturer Part Number:DHR15M
