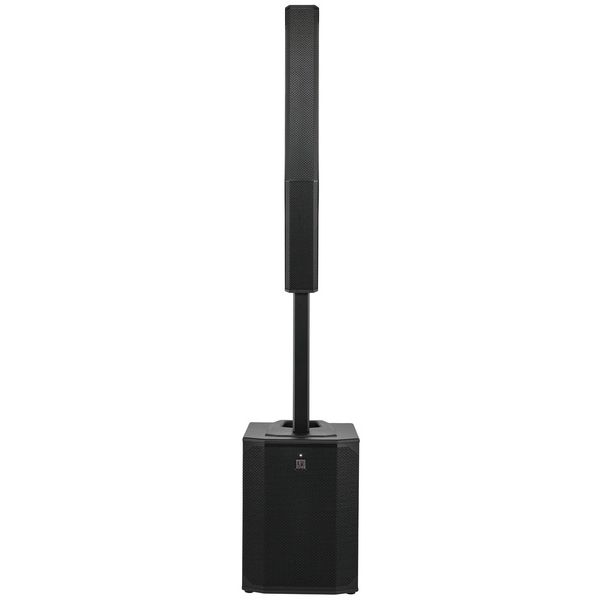

The Evolve 90 embodies the phrase, “small and mighty.” This portable column loudspeaker system delivers a mighty maximum SPL of 134dB through eight 4.7-inch neodymium high-frequency drivers. You also get powerful 120-degree horizontal coverage via proprietary waveguides, along with array-formed asymmetrical 25-degree vertical coverage. Beyond that, the Evolve 90 employs advanced FIR processing to ensure a linear frequency response and coherent phase alignment. The Evolve 90’s 18-inch subwoofer achieves low-frequency extension down to 28Hz, further bolstered by an efficient laminar-flow vent design and a punchy 4-inch voice coil. Here , we’ve found the Evolve 90 strikes a perfect balance between high power, high output, and easy portability.
Contains all the connectivity you need
No matter the application, the Electro-Voice Evolve 90 has enough connectivity to handle it. This feature-rich system houses industry-standard connectors for your microphones and line-level sound sources on XLR/TRS combo jacks, as well as XLR and RCA jacks. Do you have digital devices? It’s no problem for the Evolve 90, which also supports AES/EBU digital audio. The Evolve 90 is also integrated into Electro-Voice’s QuickSmart mobile app ecosystem, which enables you to control it as part of a larger system with other Bluetooth-enabled EV portable speakers.
Portable solutions for large-scale applications
Electro-Voice’s Evolve 70 and Evolve 90 expand the company’s Evolve family of column loudspeaker systems in response to customer demand for more powerful speakers aimed at large-scale events with audience sizes of up to 500. EV’s Evolve series is a preeminent top seller here due to its excellent balance of power, features, and portability. The Evolve 70 and Evolve 90 offer these same benefits, but with larger 15- and 18-inch subwoofers and 4.7-inch high-frequency drivers, yielding rafter-shaking maximum SPL characteristics and subterranean low-frequency extension specifications that often outperform larger and heavier PA systems. Furthermore, the Evolve 70 and Evolve 90 offer venue-filling 120-degree horizontal coverage via proprietary waveguides, with array-formed asymmetrical 25-degree vertical coverage. You also get comprehensive analog and digital connectivity, Bluetooth, and seamless integration with Electro-Voice’s QuickSmart Mobile App ecosystem. Finally, the Evolve 70 and Evolve 90 adhere to what EV refers to as the “Evolve 3-2-1” approach to assembly, meaning that the three pieces of the system fit together in two clicks to form one unit, ensuring fast, easy setup and rapid-fire deployment.
Electro-Voice Evolve 90 Features:
- A portable column loudspeaker system designed for large-scale applications
- Houses an 18-in. sub and 8 x 4.7-in. neodymium HF drivers
- Achieves a rafter-rattling 134dB maximum SPL
- Delivers LF extension down to a thunderous 28Hz
- Proprietary waveguides yield 120° horizontal coverage and array-formed asymmetrical 25° vertical coverage
- Lightweight construction using advanced materials for the utmost portability
- Industry-standard connectivity for mic- and line-level signals
- Supports AES/EBU digital audio and stereo Bluetooth
- Seamless integration with EV’s QuickSmart Mobile App ecosystem
- Designed for rapid deployment, trouble-free transport, and straightforward assembly
- Kit includes the sub, column, pole, and carry bag
Tech Specs
- Powered PA System
- 1 x 18″ sub, 8 x 4.7″ HF drivers
- 8
- 2
- Channel EQ
- Yes
- 4 x XLR (2 x mic/line, 2 x line), 1 x AES, 1 x Stereo RCA
- 3 x XLR (1 x Mix, 1 x Thru, 1 x Sub out)
- Yes
- 1 x Ethernet (Link)
- 2000W
- 133dB SPL
- 120°
- 25°
- EV QuickSmart
- powerCON
- 98.1 lbs
